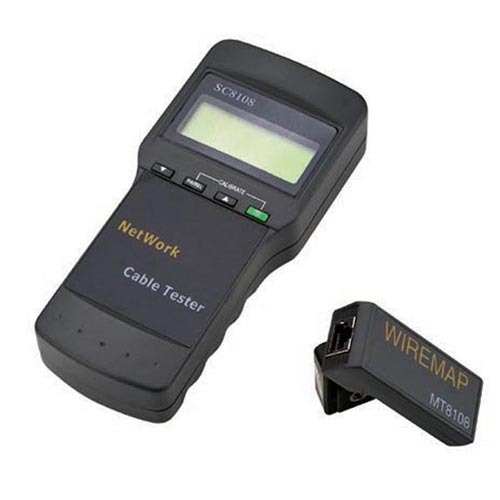

Multifunction Network LAN Cable Tester Meter Cat5 Phone RJ45 RJ11 BNC

Price: 34.0 USD
Payment Terms: T/T,L/C,D/P,WU
Place of Origin: Zhejiang, China (Mainland)
inquire skype
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: GL-8108
Production Capacity: 1000pcs
Delivery Date: 3days
Means of Transport: Ocean,Land,Air
Packing: clor box

Network Cable Tester
*One person enough to complete cable continuity check.
*Check wiring error in RJ45 Lan Cable.
*Such as open circuit, s

Network Cable Tester

*One person enough to complete cable continuity check.
*Check wiring error in RJ45 Lan Cable.
*Such as open circuit, short Circuit, jumper wire, reverse connectioncross-talk interference.
*Measure cable length and determine the distance of open circuit and short circuit. *Dynamically calibrate cable lenghth and make length measurement as accurate as 97%. *Simple andeasy use,big screen to display test result clear.

KEY STRENGTHS:
Does the wire you've pulled and connected to all equipment working? This Multi-Network Cable Tester is the perfect troubleshooter, it instantly checks your LAN cable wiring for proper continuity and wiring pattern, shorts, cable sequence and pair integrity. The tester will automatically detect far-end matcher (ID) or local port (L) cable and displays if the far-end of cable to be checked does not insert into the far-end matcher (ID) or if the cable does not insert into the local port (L) in local test. The SC-8108 network cable tester instantly check your LAN cable wiring for proper continuity, shorts, and pair integrity. Test results are digitally shown via its LCD and it instantly displays the exact configuration of the cable. It performs line test without requiring the external adaptor. With single board computer software watchdog design and reliable operating time. This covers wide array of applications such as cable connection sequence, length, user jumper or crossfire, cable connection continuity and determine any open circuit, short circuit, jumper or cross-talk interference.

Standardizations:
We made sure that SC-8108 has CE-Approval and that it bears the CE marking which certifies its compliance with the essential health standards and safety requirements set out by the European Directives because we always bear in the safety of the buyer or user.

Do your cabling with confidence! Prevent and solve cable installation/maintenance problems instantly!


Buy Now!


Features: Efficient, effective, reliable, easy and safe to use.

  • A person is enough to complete cable continuity check and cable sequence, the easy way

  • Indicates pair integrity of the cable

  • Measure length and pair with or without far-end recognizer

  • Locates the wiring or connection error

  • Measure cable length and determine the distance of open circuit and short circuit

  • Permits you to check wiring error in 5E/6E twisted cord network, coaxial cable and telephone line

  • Applicable for open circuit, short circuit, jumper wire, reverse connection or cross-talk interference

  • Dynamically calibrate cable length and make length measurement as accurate as 97%

  • Simple and easy use, big LCD screen to display test clear

  • Portable unit with long battery life (wait-case or standby mode for over 50 hours)

  • Auto time delay shut off

  • Comes with 1 far-end passive test jack

  • Far end recognizer with prompt voice

  • Single board computer software watchdog design and reliable operating

  • Self-checking function and automatically compensates any change in battery capacity or ambient temperature



Specifications:

  • LCD: 4 x 16 characters big LCD screen (valid visual field 61.6 x 25.2 mm)

  • Type of Tester Cable: STP / UTP twin twisted cable, coaxial cable, telephone line

  • Tester Port

    • Tester RJ45 master port (M), tester LOOPBACK RJ45 port (L), far-end recognizer RJ45 port (R)
      (BNC and RJ11 converters (not included in the set), can be used to measure and check the continuity of coaxial cable and telephone line)

  • Length Measurement of Twin Twisted Cable:

    • Scope: 1 to 350M (3 to 1,200 FT) calibration

    • Calibration accuracy: 3% (±0.5m or ±1.5 ft) (calibrating cable > 5 M)

    • Shipment accuracy: 5% (±0.5m or ±1.5 ft) (AMP, AT&T Class 5 cable)

  • Unit of Measurement: Display in meter (M) or feet (FT)

  • Length Calibration: User can set self-calibration factor by a given length cable.
    ************** The length of calibrating cable is more than 5M

  • Wire Sequence and Locating Cable Error

    • Check errors such as open circuit, short circuit, reverse connection, cross over or cross-talk interference

  • Locating Cable: Included 1 far-end passive test jack

  • Working Ambient Temperature: -10°C to 60°C

  • Automatic Time-delay Shut Off Time: The tester is idle for 30 minutes

  • Uses 2 x AA batteries (not included in the set)

  • Item size: 180 x 80 x 40 mm

Accessories:

  • INCLUDED

    • 1 x Multi-Network Cable Tester

    • 1 x Far-End Test Jack (ID1)

    • 1 x Soft Carrying Bag

    • Instruction Manual

    • Standard Packaging Box


Warranty: 2 years warranty

All our products are manufactured under the strict quality control guidelines established by EN ISO9001-2000 Standards
